Acoplamientos rápidos hidráulicos de cara plana NPT 1/2″ rosca 1/2″ tamaño ISO16028

Visión general

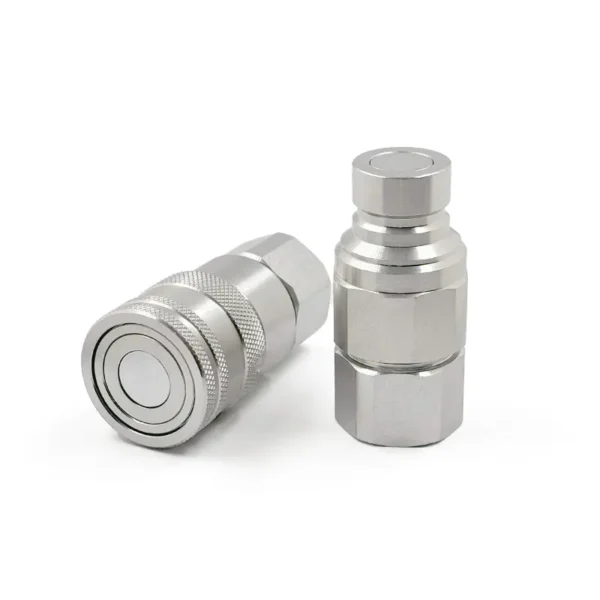

Upgrade your hydraulic systems with our premium 1/2 ISO16028 Skid Steer Bobcat Flat Face Hydraulic Quick Connect Couplers/Couplings Set. Designed to meet ISO 16028 standards, this set includes both male and female couplers with 1/2″ NPT female threads. Engineered for durability and efficiency, our quick coupling set is perfect for a variety of industrial, agricultural, and construction applications.

Rosca NPT de 1/2

• Dimensions: The outer diameter of the 1/2″ NPT thread is  tapered, which means the diameter decreases slightly along the length of the threads.
• Thread Specification: NPT threads have a 60-degree thread angle and follow the ANSI/ASME B1.20.1 standard for pipe threads.
• Sellado: Achieved by the wedging action of the threads, typically enhanced with thread sealant or tape to prevent leaks.

Quick Disconnect Coupling

• Cumplimiento de la norma ISO 16028: Ensures universal compatibility and reliable performance across diverse hydraulic systems.
• Diseño de cara plana: Minimizes fluid loss and contamination, promoting a cleaner and safer hydraulic environment.
• Complete Set: Includes both male and female couplers for a comprehensive and ready-to-use solution.
• Heavy-Duty Construction: Crafted from high-grade materials(Carbon Steel) for enhanced durability and longevity in demanding conditions.
• Fácil manejo: Quick connect and disconnect functionality reduces downtime and boosts productivity.

Especificaciones:

Guardapolvos

• Proteja los extremos expuestos del acoplamiento del polvo, la suciedad, la humedad y otros contaminantes que puedan interferir en la conexión y el funcionamiento.
• Plástico - PVC : Ligero y resistente a la corrosión.

Intercambiabilidad
