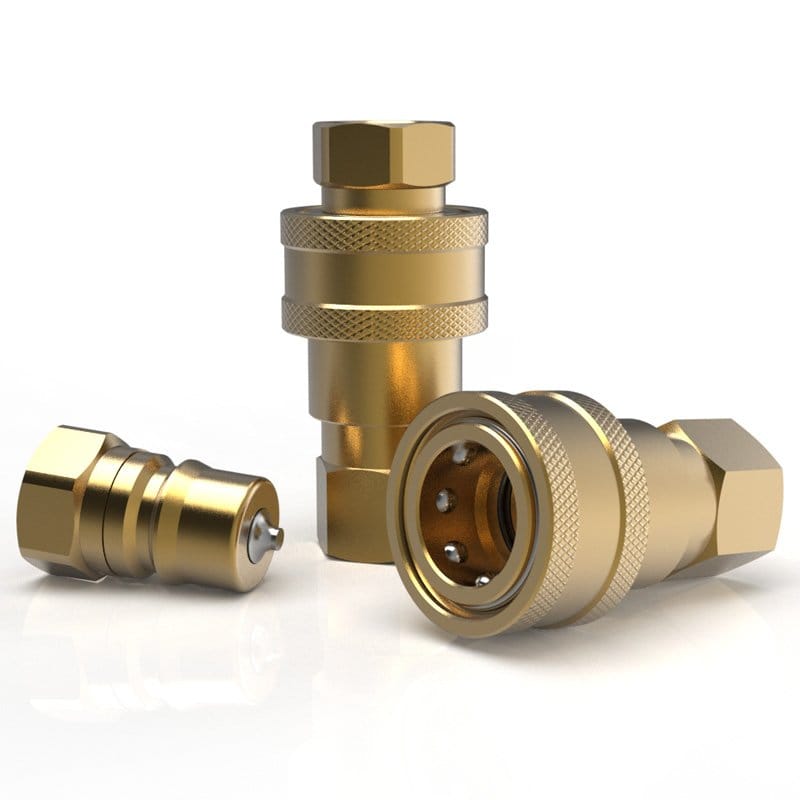

IBB Series – Brass ISO B Coupler – Quick Couplings Made to ISO 7241:2023 Series B Standard
IBB Series brass ISO B coupler incorporates all the
benefits of the carbon steel IB Series couplers while providing
good corrosion resistance for specific applications. Because of their good performance on corrosion resistance, they are widely used in water applcaions, gas supplying, steam application and refrigerator and AC products etc. Stainless steel IBS2 series usaully can be Alternated because brass item can get cheaper in some applications.
Series IBB //Brass
| Material | Brass ( Poppet and Ball, stainless steel) |
| Surface Finishing | No plating |
| Standard Seal Material(s) | FKM2 |
| Working Temperature | -25° C … +200° C / -13° F … +392° F |
| Valve Design | Poppet Valve |
| Connection | Push and actuate Push Sleeve |
| Disconnection | Actuate Push Sleeve |
| Connect Under Pressure | not allowed |
| Application | Cooling systems, Marine, Oil and gas, Chemical, Pharmaceutical, steam |
| ISO Interchange | ISO 7241-1, Series B |
2 Alternative seal materials are available on request.
Features
- Accepts ISO 7241-1, Series B compliant nipples
- Poppet valves along with a metal to metal valve stop maintains valve alignment and prevents flow checking
- brass, and stainless steel material
- double O-rings and stainless steel locking balls
- Optional Sleeve-Lok and alternative seal materials available
Applications
- Cooling Systems
- Marine
- Oil and Gas
- Chemical
- Pharmaceutical
