NPT 1/4" ISO A Quick COuplings

Intercambiabilidade: Ensures that couplings from different manufacturers will fit and function correctly together.
Performance: Specifies performance criteria such as pressure ratings, flow capacity, and durability requirements.
Segurança: Provides guidelines to ensure safe operation under specified conditions, reducing the risk of accidents.

Rosca NPT de 1/4″

Dimensions: The outer diameter of the 1/4″ NPT thread is approximately 0.54 inches (13.72 mm). The threads are tapered, which means the diameter decreases slightly along the length of the threads.
Thread Specification: NPT threads have a 60-degree thread angle and follow the ANSI/ASME B1.20.1 standard for pipe threads.
Selagem: Achieved by the wedging action of the threads, typically enhanced with thread sealant or tape to prevent leaks.

Mecanismo de bloqueio de esfera: Uses balls that move into place to lock the plug and socket together securely.
Sleeve mechanism: A sleeve that must be pulled back to connect or disconnect the coupling, providing a quick and efficient operation.
Steel Material: Hardened Carbon Steel material, Provides higher strength and is often used in heavy-duty applications.
Zincagem Trivalente: O zinco atua como um revestimento de sacrifício, corroendo antes do metal subjacente, protegendo assim a peça da ferrugem.
Nitrile Rubber (NBR) Seal Material: Nitrile Rubber (NBR), also known as Buna-N or acrylonitrile butadiene rubber, is a synthetic rubber copolymer of acrylonitrile (ACN) and butadiene. It is renowned for its excellent resistance to oils, fuels, and other chemicals, making it a popular material in various industrial applications. It is the default Seal ring material. If you need other Seal Material like FKM,EPDM,and others, please contact us.

Parâmetro	Detalhes
Tamanho do corpo	1/4″
Tamanho da rosca	NPT 1/4″ Fêmea
Norma ISO	ISO 7241-1 Série A
Opções de materiais	Aço carbono (zincado)
Material de vedação	Nitrila (Buna-N)
Pressão de trabalho	4569 PSI
Faixa de temperatura	-25°C a 100°C (-13°F a 212°F)
Taxa de fluxo	Specify max flow rate, 4,5 L/min
Tipo de conexão	Pressione para conectar
Tipo de desconexão	Puxe para desconectar
Diâmetro externo 26	26 milímetros

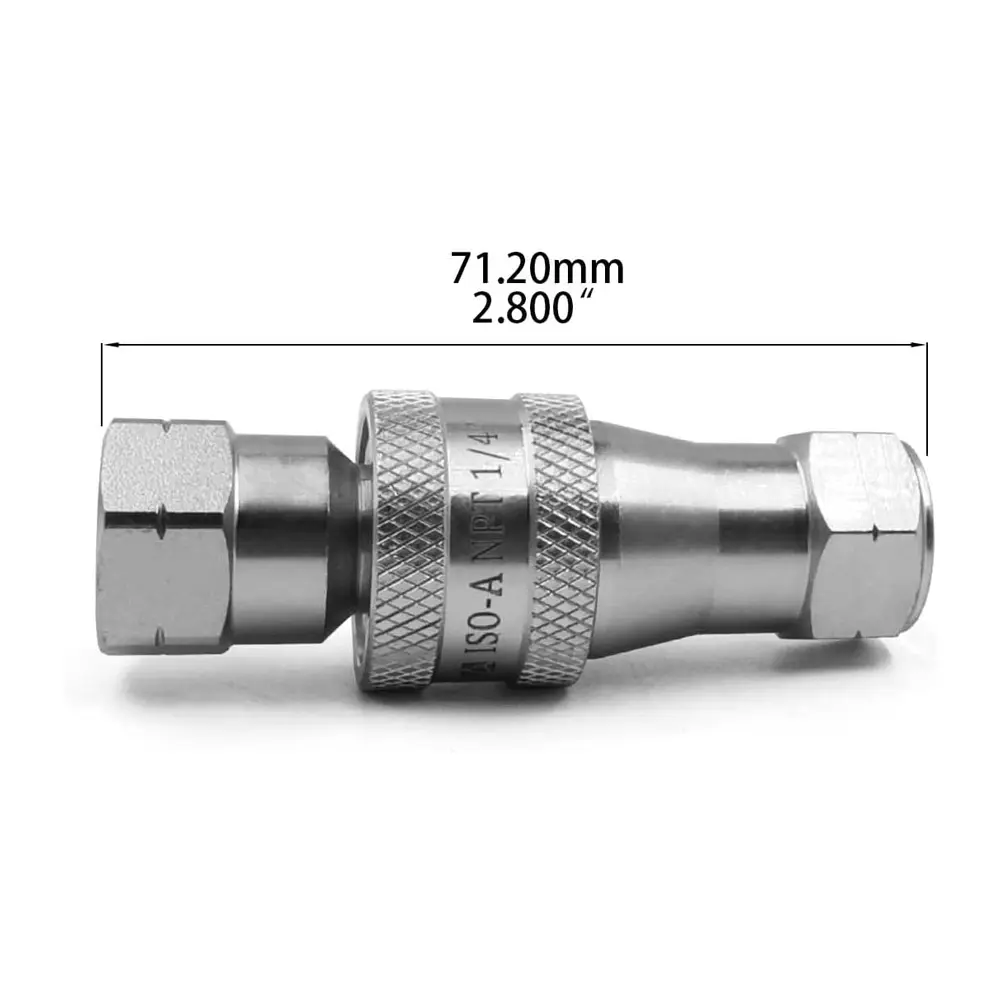

Comprimento total	70,5 milímetros
Peso	Acoplador fêmea 0,1 kg, Acoplador macho 0,05 kg
Material da tampa contra poeira	Plástico durável
Marcas Intercambiáveis	Compatível com Faster, Parker, Safeway, Stucchi e outras marcas compatíveis com ISO 7241-1 Série A

Proteja as extremidades expostas do acoplamento contra poeira, sujeira, umidade e outros contaminantes que possam interferir na conexão e na operação.
Plástico – PVC: Leve e resistente à corrosão.
